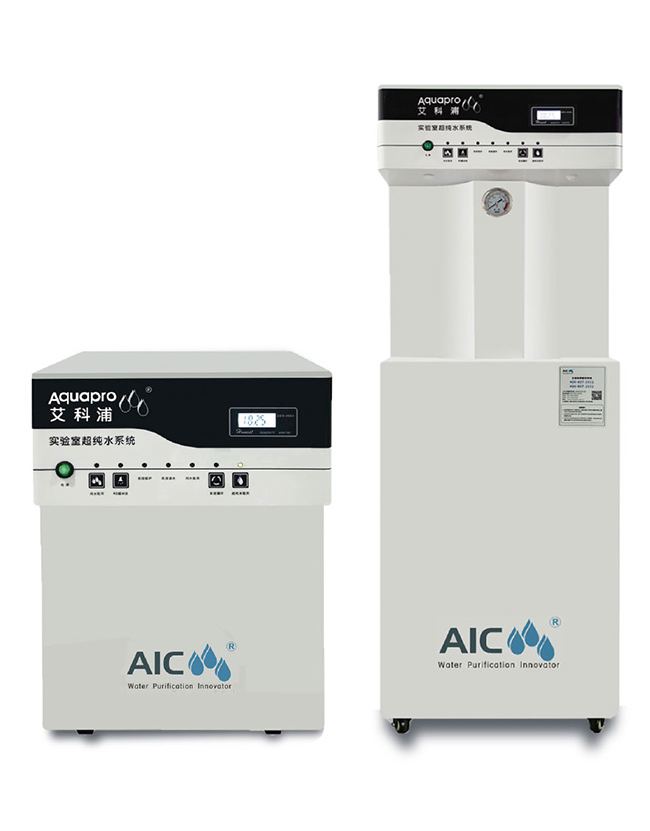

Aquaplus FZ

Easy access to compliant laboratory water

Aquaplus FZ series ultrapure water machine adopts advanced fully automatic control program, integrating pretreatment unit, reverse osmosis unit, ultrapure purification unit, dual wavelength UV lamp and terminal ultrafiltration column, designed for laboratories and suitable for all kinds of analytical experiments.

With Aquaplus FZ you can......

  • 1.Tap water intake, automatic continuous water production, greatly meet the water needs of the laboratory.
  • 2.The patented DP-RO depth desalination technology is more suitable for water sources with high salt content. It can ffectively reduce the burden of desalination of the post-stage purfication unit and reduce the operating cost of the equipment.
  • 3.Modular and quick intermal design, easy to install and maintain. Pre-treatment, reverse osmosis, purification column and post stage treatment unit are all independent structures, which makes cartridge replacement and system maintenance more convenient.
  • 5.The RO membrane component with original imported membrane of Dow DOW, ion exchange resin, polished nucleus grade resin, silent high pressure pump, inlet solenoid valve, etc, the product performance is guaranteed to the maximum.
  • 6.Aikopu's patented fully automatic control system, with a microcomputer chip to control the operation of the equipment in line with GLP safty requirements. The operation status is ntuitively displayed and easy to operate.
  • 7.Self-test water shortage protection alarm, automatic reset in case of power filure, automatic shutdown when the pure water tank is full ultra-low pressure protection, UV lamp filure alarm and other functions to provide safety assurance.
  • 8.Automatic RO membrane anti-scaling cleaning function and manual forced rinsing program to maximize the service life of RO membrane.
  • 9.Quickly achieve 18.25MQ.cm@25"C stable water quality saving wate, eletricity and time.
  • 10.Water quality online monitoring system, can instantly measure the water quality of produced water.
  • 11.Can be selected when taking water programmed design, eliminating manual water waiting.
  • 12.Optional RS232 interface, record the history of Water quality.
  • 13.Optional PE water tank of dfferent capacity.

 ( Learn more)

Water quality
B M H
Type I Water Resistivity (25°C ) 18.2MQ.cm 18.2MQ.cm 18.2MQ.cm
Grade III Water Conductivity(25°C) 1-5μS/cm 1-5μS/cm 1-5μS/cm
Total organic carbon2 (TOC)
(treated by DP-RO)
<5ppb <5ppb
Baecteeria3 <0.1cfu/ml <0.001cfu/ml
Baecteerial endotoxin3 <0.001EU/ml
Particles(>0.2μm) <1/ml <1/ml <1/ml
1.When using new reverse osmosis membrane under the condition of general municipal water and conductivity <400μS/cm.
2. Under the condition of feed water TOC < 50ppb and proper operation conditions.
3. With UV device and ultra-precision filtration module, under regular cleaning and maintenance.
Water production volume specifications
Secondary reverse osmosis water production volume (25°C)     RO Water yield:5L/h、10L/h、15L/h、20L/h、30L/h、40L/h、60L/h、120L/h
    DP-RO Water yield:5L/h、10L/h、15L/h、20L/h、30L/h、40L/h、60L/h
Water withdrawal flow rate     ≤2L/min
Water intake requirements
Water Source     tap water
Flow rate     ≥500L/h
Conductivity(25°C)     <1000μS/cm
Pressure     1-5bar
Temperature     5-35°C
Free chlorine     <1ppm
PH value     6.5-8.5
Total hardness(by CaCO3)     <450ppm
Electricity requirement
Power Supply     220V/50Hz
System power     350W
Size and weight
Dimesion(H×W×D) 540×380×480mm 1500×500×500mm
Packing weight 38Kg 100Kg
*All information and descriptions on the official website represent only the general functions and parameters of the equipment, and are subject to the technical leaflets or bid documents provided by the company.
