Aquaplus GM

Easy access to compliant laboratory water

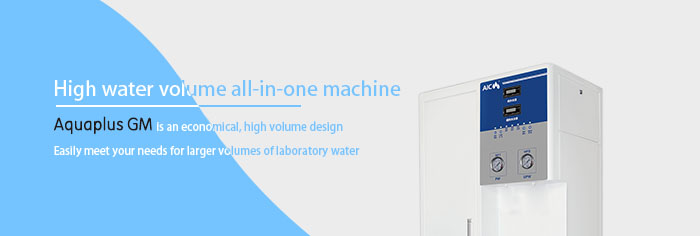

Aquaplus GM series ultrapure water machine adopts advanced fuly automatic control program, integrating pretreatment unit, reverse osmosis unit, ultrapure purification unit, dual wavelength UV lamp and terminal utafiltration column, designed for laboratory and suitable for all kinds of analytical experiments.

With Aquaplus GM you can......

  • 1. Tap water intake, automatic continuous water production, greatly meet the water needs of the laboratory.
  • 2. The patented DP-RO depth desalination technology is more suitable for water sources with high salt content. It can efectively reduce the burden of desalination of the post-stage purification unit and reduce the operating cost of the equipment.
  • 3. Modular and quick intermal design, easy to install and maintain. Pre-reatment, reverse osmosis, purification column and post-stage treatment unit are all independent structures, which makes cartridge replacement and system maintenance more convenient.
  • 4. Pre-treatment adopts 5um loose outside and tight inside progressive PP cartridge and coconut shell activated carbon cartridge to effectively protect RO membrane.
  • 5. The RO membrane component with original imported membrane of Dow DOW, ion exchange resin, polished nucleus grade resin, silent high pressure pump, inlet solenoid valve, etC, the product performance is guaranteed to the maximum.
  • 6. Aikopu's patented fully automatic control system, with a microcomputer chip to control the operation of the equipment, in line with GLP safety requirements. The operation status is itnitively displayed and easy to operate.
  • 7. Self-test, water shortage protection alarm, automatic reset in case of power failure, automatic shutdown when the pure water tank is full, ultra-low pressure protection, UV lamp failure alarm and other functions to provide safety assurance.
  • 8. Automatic RO membrane anti-scaling deaning function and manual forced rinsing program to maximize the service life of RO membrane.
  • 9. Quicly achieve 18.25M2.cm@25°C stable water quality, saving water, electricity and time.
  • 10. Water quality online monitoring system, can instantly measure the water quality of produced water.
  • 11. Can be selected when taking water programmed design, eliminating manual water waiting.
  • 12. Optional RS232 interface, record the history of water quality.
  • 13.Optional PE water tank with dfferent capacity and purification column with large treatment capacity.
  • (Learn more)

Water quality
B M H
Type I Water Resistivity (25°C ) 18.2MQ.cm 18.2MQ.cm 18.2MQ.cm
Grade III Water Conductivity(25°C)
Total organic carbon2(TOC)(treated by DP-RO) <5ppb <5ppb
Baecteeria3 <0.1cfu/ml <0.001cfu/ml
Baecteerial endotoxin3 <0.001EU/ml
Particles(>0.2μm) <1/ml <1/ml <1/ml
1.When using new reverse osmosis membrane under the condition of general municipal water and conductivity <400μS/cm.
2. Under the condition of feed water TOC < 50ppb and proper operation conditions.
3. With UV device and ultra-precision filtration module, under regular cleaning and maintenance.
Water production volume specifications
Secondary reverse osmosis water production volume (25°C)     RO Water yield:180L/h、250L/h
    DP-RO Water yield:80L/h、120L/h
Water withdrawal flow rate     ≤2L/min
Water intake requirements
Water Source     tap water
Flow rate     ≥500L/h
Conductivity(25°C)     <1000μS/cm
Pressure     1-5bar
Temperature     5-35°C
Free chlorine     <1ppm
PH value     6.5-8.5
Total hardness(by CaCO3)     <450ppm
Electricity requirement
Power Supply     220V/50Hz
System power     1000W(MAX)
Size and weight
Dimesion(H×W×D)     1700×800×500mm
Packing weight     180Kg
*All information and descriptions on the official website represent only the general functions and parameters of the equipment, and are subject to the technical leaflets or bid documents provided by the company.
