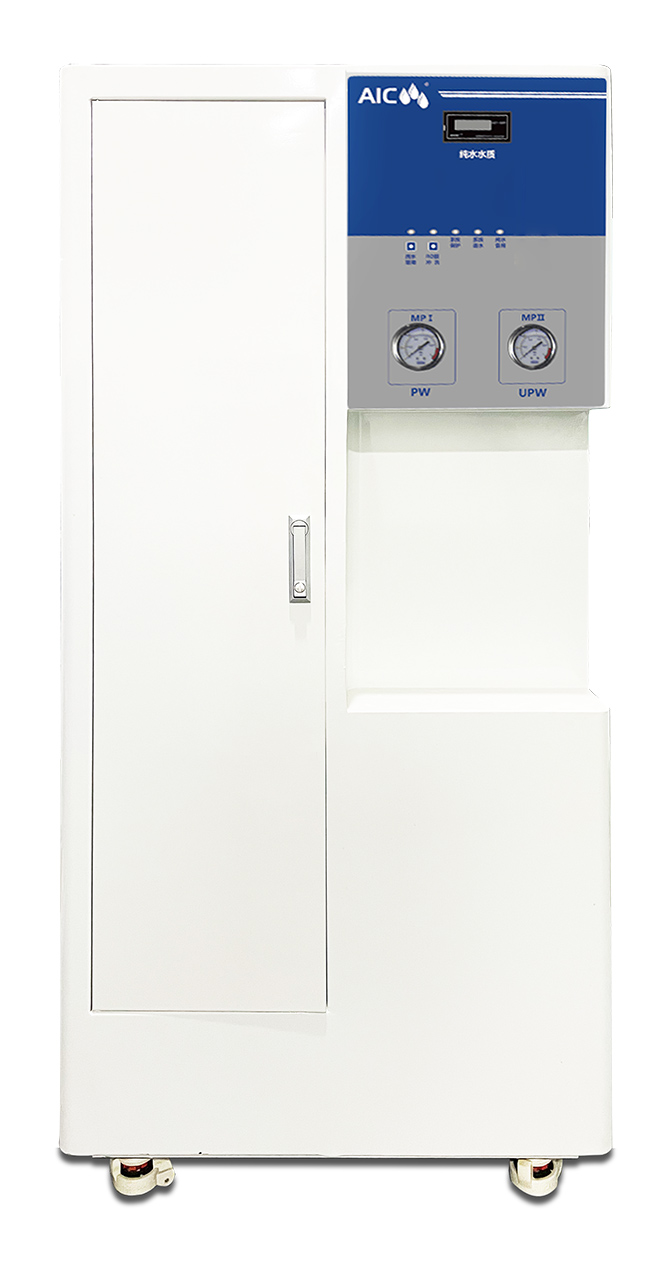

Aquaplus GR

Easy access to compliant laboratory water

Aquaplus GR series ultrapure water dispenser with advanced flly automatic control program, integrating pretreatment unit, reverse osmosis unit, dual wavelength UV lamp and terminal utrafilration column, is designed for laboratories and suitable for all kinds of analytical experiments.

With Aquaplus GR you can......

  • 1 Tap water intake, automatic continuous water production, greatly meet the water needs of the laboratory.
  • 2. The patented DP-RO depth desalination technology is more suitable for water sources with high salt content. It can effectively reduce the burden of desalination of the post stage purification unit and reduce the operating cost of the equipment
  • 3. Modular and quick intemal design, easy to istall and maintain Pre-treatment, reverse osmosis, purification column and post-stage treatment unit are all independent structures, which makes cartridge replacement and system maintenance more convenient.
  • 4. Pre-treatment adopts 5μm loose outside and tight inside progressive PP cartridge and coconut shell activated carbon cartridge to effectively protect RO membrane.
  • 5. The RO membrane component with original imported membrane of Dow DOW, ion exchange resin, polished nucleus grade resin, silent high pressure pump, inlet solenoid valve, etc, the product performance is guaranteed to the maximum.
  • 6. Aikopu's patented flly automatic control system, with a microcomputer chip to control the operation of the equipment, in line with GLP safety requirements. The operation status is intuitively displayed and easy to operate.
  • 7. Self-test, water shortage protection alarm, automatic reset in case of power failure, automatic shutdown when the pure water tank is fll ultra-low pressure protection, UV lamp failure alarm and other functions to provide safety assurance.
  • 8. Automatic RO membrane anti-scaling cleaning function and manual forced rinsing program to maximize the service life of RO membrane.
  • 9. Water quality online monitoring system, can instanty measure the quality of produced water.
  • 10. Time -sensitive water collection program design, eliminating the need to wait for manual water collection.
  • 11. Optional RS232 inteface, record the history of water quality.
  • 12. Optional PE water tank of dfferent capacity and puification column of large treatment capacity.
  • (Learn more)

Water quality
B M H
Type I Water Resistivity (25°C ) 2-10μS/cm 2-10μS/cm 2-10μS/cm
Total organic carbon2(TOC)(treated by DP-RO) <5ppb <5ppb
Baecteeria3 <0.1cfu/ml <0.001cfu/ml
Baecteerial endotoxin3 <0.001EU/ml
Particles(>0.2μm) <1/ml <1/ml <1/ml
1.When using new reverse osmosis membrane under the condition of general municipal water and conductivity< 400μS/cm.
2. Under the condition of feed water TOC < 50ppb and proper operation conditions.
3. With UV device and ultra precision filtration module, under regular cleaning and maintenance.
Water production volume specifications
Reverse osmosis water yield     RO Water yield:180L/h、250L/h
    DP-RO Water yield:80L/h、120L/h
Water withdrawal flow rate     ≤2L/min
Water intake requirements
Water Source     tap water
Flow rate     ≥500L/h
Conductivity(25°C)     <1000μS/cm
Pressure     1-5bar
Temperature     5-35°C
Free chlorine     <1ppm
PH value     6.5-8.5
Total hardness(by CaCO3)     <450ppm
Electricity requirement
Power Supply     220V/50Hz
System power     1000W(MAX)
Size and weight
Dimesion(H×W×D)     1700×800×500mm
Packing weight     180Kg
*All information and descriptions on the official website represent only the general functions and parameters of the equipment, and are subject to the technical leaflets or bid documents provided by the company.
